IKO S

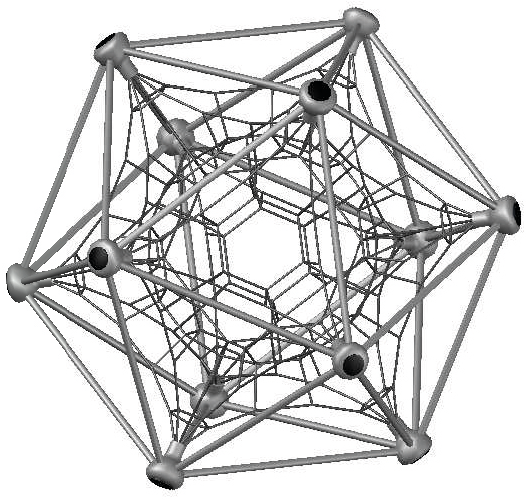

Perspective

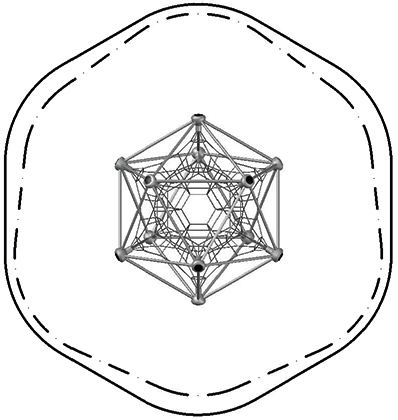

Top view
| 70.100.123 | ||
|---|---|---|
|
(m) (‘-‘‘) |
3,3 x 2,9 x 2,8 10-10 x 9-6 x 9-0 |
|
EN 1176 (m) ASTM/CSA(m) ASTM/CSA (‘-‘‘) |
6,5 x 6,3 7,0 x 6,6 22-10 x 21-6 |
|
(m) (‘-‘‘) |
1,67 6-0 |
|
2-12 | |
Technical changes reserved
